Product Introduction

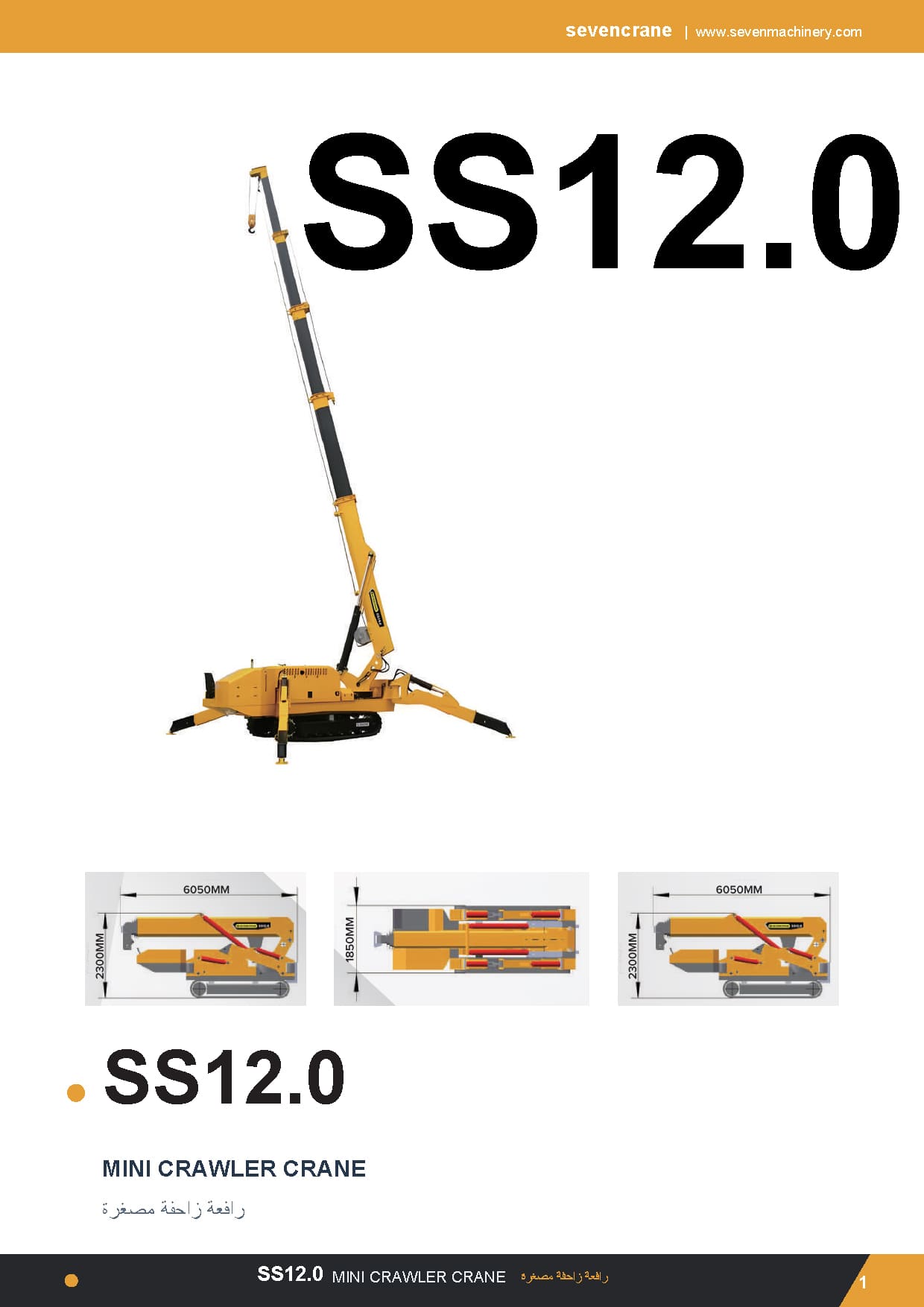

SEVENCRANE SS12.0 spider crane is a highly versatile and compact lifting solution designed for confined spaces and challenging terrains.

Equipped with a powerful telescopic boom, precise remote control operation, and an efficient hydraulic system, it ensures smooth and safe lifting operations. Its crawler tracks provide excellent stability on uneven surfaces while minimizing ground impact.

Ideal for construction sites, industrial maintenance, and indoor applications, this spider crane offers high lifting capacity, flexible maneuverability, and easy transport, making it a reliable choice for various lifting tasks.

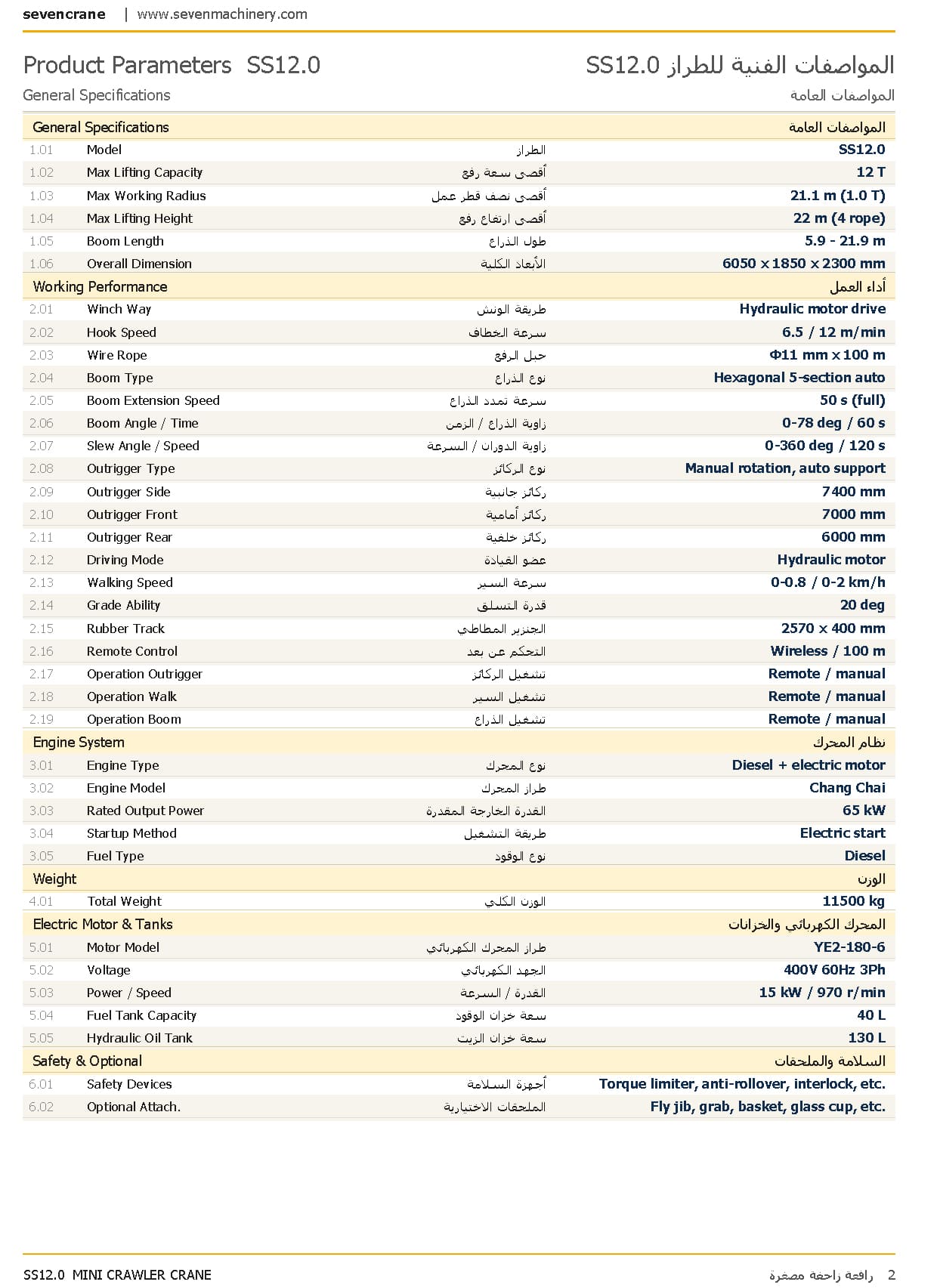

SS12.0 Specifications

Model		SS12.0
Specification		1.0t x 21.1m
Maximum Working Radius		21.1m x1.0t
Maximum Ground Lifting Height		21m
Winch Device	Hook Speed	6.5m/min-12m/min
Winch Device	Rope	11mmx 100m
Telescopic System	Boom Type	Hexagonal fully automatic 5 section
	Boom Length	5.9m~21.9m
	Telescopic Length/Time	50sec
Up and Downs	Boom Angle/Time	0~78° /60sec
Slew System	Slew Angle/Time	0~360° /120sec
Outrigger	Outrigger Active Form	Manual rotation, Automatic support
Outrigger	Maximum Extended Dimensions	7400mm x 7000mm x 6000mm
Traction system	Walking Way	Hydraulic motor
	Walking Speed	Low speed 0-0.8km/h, high speed 0-2km/h
	Grade Ability	20°
	Ground Length x Width	2570mm x400 mm
Diesel Engine	Model	Chang Chai
	Displacement	/L
	Rated Output	65kw
	Starting Method	Electric starting
	Fuel	diesel
Electric Motor	Model	YE2-180-6 （three-phase AC asynchronous motor）
	Working Voltage	380V （Hz50）
	Power	15Kw
Dimension	Length x Width x Height	6050mm x 1850mm x 2300mm
Weight	Vehicle Weight	11500kg
Tank Capacity	130L
Safety Devices	Torque limiter, anti rollover device, interlock device, hook overwinding device, overload alarm limiter, tri color alarm light, emergency stop button.

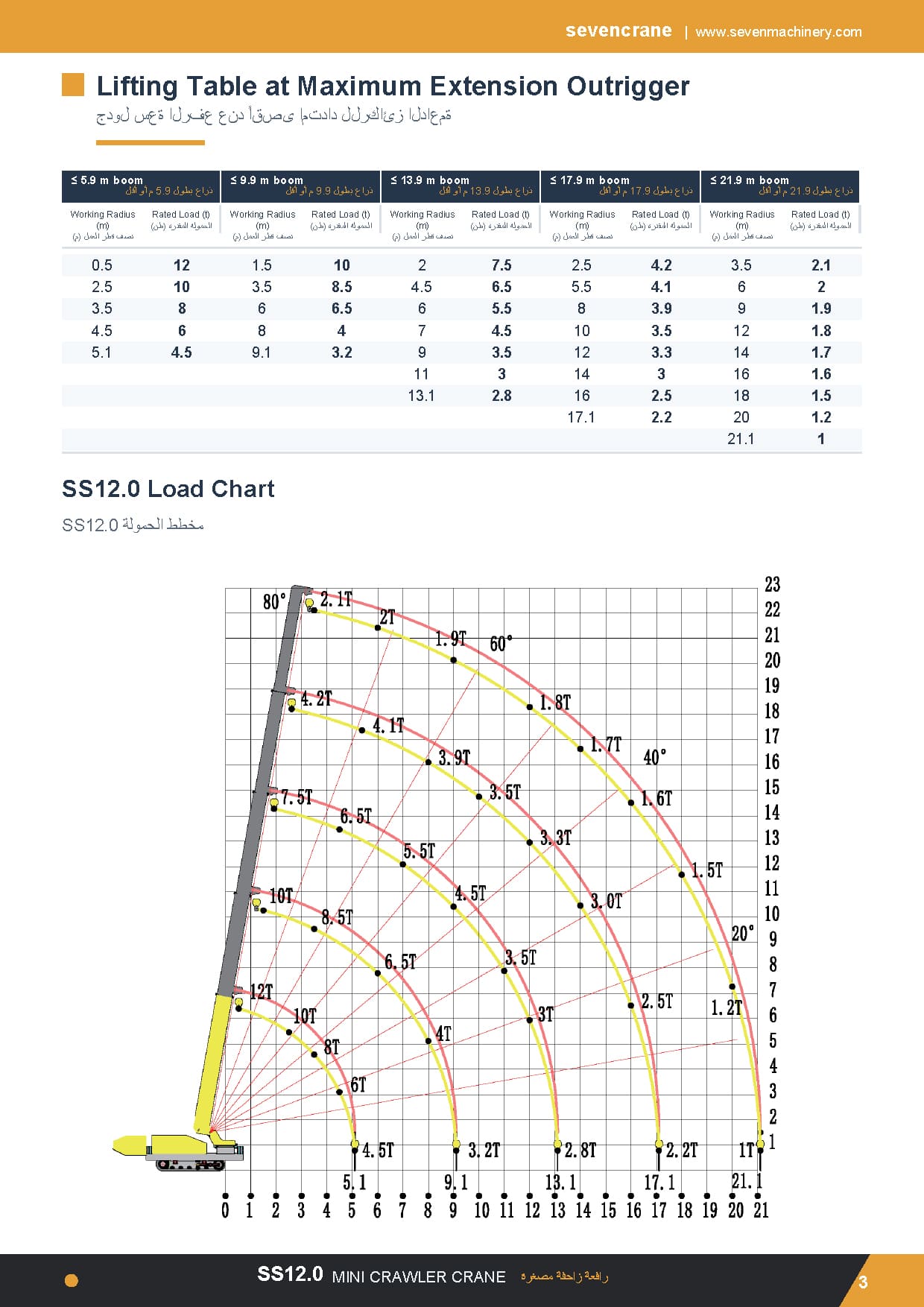

Lifting Table

Total rated load outriggers at maximum positions

≤5.9m		≤9.9m		≤13.9m		≤17.9m		≤21.9m
Working Radius (m)	Rated Load (t)	Working Radius (m)	Rated Load (t)	Working Radius (m)	Rated Load (t)	Working Radius (m)	Rated Load (t)	Working Radius (m)	Rated Load (t)
0.5	12	1.5	10	2.0	7.5	2.5	4.2	3.5	2.1
2.5	10	3.5	8.5	4.5	6.5	5.5	4.1	6.0	2.0
3.5	8.0	6.0	6.5	6.0	5.5	8.0	3.9	9.0	1.9
4.5	6.0	8.0	4.0	7.0	4.5	10	3.5	12	1.8
5.1	4.5	9.1	3.2	9.0	3.5	12	3.3	14	1.7
				11	3.0	14	3.0	16	1.6
				13.1	2.8	16	2.5	18	1.5
						17.1	2.2	20	1.2
								21.1	1.0
