SPIDER CRANE-SS10.0

Kapaciteta: 0.8Tx 18.6m
Največja višina dviga: 20.2m
Največja višina dviga (pod zemljo): 19.6m
Največji delovni radij: 18.6m x0.4T
Dimenzija: 5550mm x 1850mm x 2300mm
Utež: 9200kg



Predstavitev izdelka

SEVENCRANE SS10.0 spider crane is a compact, flexible and powerful crawler crane suitable for narrow spaces and complex terrains.

Its folding outrigger design provides stability and flexibility, making it easy to access areas that traditional lifting equipment cannot cover. Equipped with wireless remote control, precise control system and dual power mode (diesel + electric).

The remote control can display safe working load, actual load, radius and boom length, allowing for better visibility and precise placement of loads.

An excellent after care service is provided with any our crane purchase, and our technical team offer maintenance, repairs, servicing and testing. We also stock genuine spare parts for all our mini cranes.

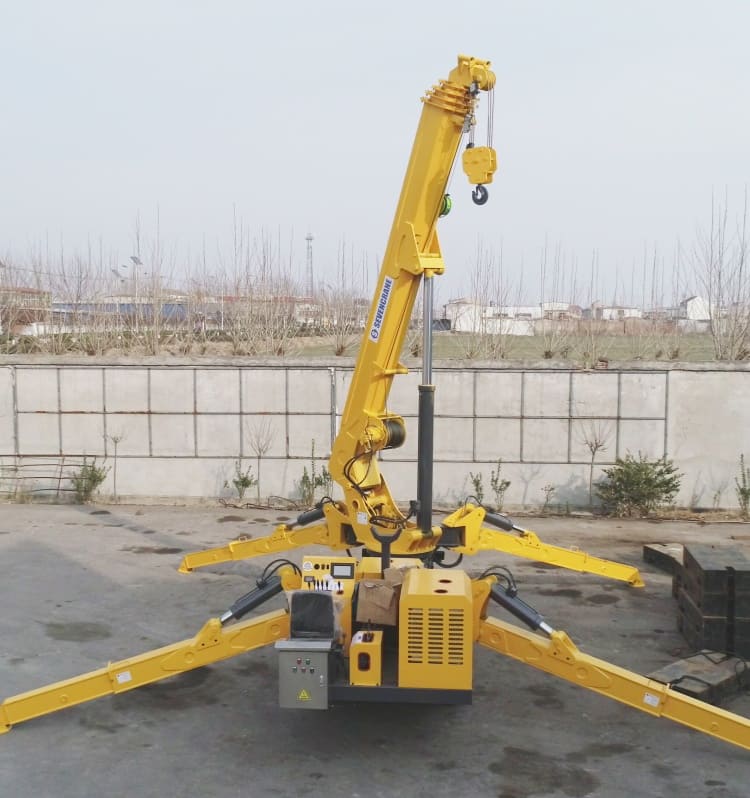

SS 10.0 spider crane

SS10.0 Specifications

Model

SS10.0

Specifikacija

0.8t x 18.6m

Največji delovni radij

18.6m x0.4t

Največja višina dviga na tla

19.6m

Naprava za vitel

Hitrost kljuke

6.5m/min-12m/min

Vrv

11mmx 90m

Teleskopski sistem

Vrsta ogrodja

Hexagonal fully automatic 5 section

Dolžina nosilca

5.1m~19.6m

Teleskopska dolžina/čas

50sec

Gor in dol

Kot ogrodja/čas

0~78° /60sec

Obrtni sistem

Kot obračanja/čas

0~360° /120sec

Opornik

Outrigger Active Form

Manual rotation, Automatic support

Največje razširjene dimenzije

7400mm x 7000mm x 6000mm

Vlečni sistem

Walking Way

Hidravlični motor

Hitrost hoje

Low speed 0-0.8km/h, high speed 0-2km/h

Razred Sposobnost

20°

Dolžina x širina tal

2570mm x350 mm

Dizelski motor

Model

4TNV98(YANMAR)

Premik

3.319L

Rated Output

42.4kw

Zagonska metoda

Električni zagon

Gorivo

dizel

Električni motor

Model

YE2-180-6 (three-phase AC asynchronous motor)

Delovna napetost

380V (Hz50)

Moč

15Kw

Dimenzija

Dolžina x širina x višina

5550mm x 1850mm x 2300mm

Utež

Teža vozila

9200kg

Kapaciteta rezervoarja

130L

Varnostne naprave

Torque limiter, anti rollover device, interlock device, hook overwinding device, overload alarm limiter, tri color alarm light, emergency stop button.

Dvižna miza

Skupna nazivna obremenitev opornikov na največjih položajih

≤5.4m

≤8.9m

≤12.4m

≤15.9m

≤19.4m

Delovni polmer (m)

Nazivna obremenitev (t)

Delovni polmer (m)

Nazivna obremenitev

(t)

Delovni polmer (m)

Nazivna obremenitev

(t)

Delovni polmer (m)

Nazivna obremenitev

(t)

Delovni polmer (m)

Nazivna obremenitev

(t)

1.0

10

1.0

8.0

2.0

5.0

2.5

2.0

3.0

0.8

2.5

8.0

3.0

7.0

4.5

4.0

4.5

1.85

6.0

0.7

3.5

5.0

4.5

6.0

6.5

3.5

6.5

1.8

8.0

0.65

4.6

3.0

6.0

4.0

8.5

3.0

8.5

1.75

10

0.6





7.5

3.0

10.5

2.5

10.5

1.7

12

0.55

8.1

1.8

11.6

1.2

12.5

1.5

14

0.5





14.0

1.2

16

0.45

15.1

0.8

18.6

0.4
