Kapaciteta: | 1.0Tx 21.1m |
Največja višina dviga: | 22m |
Največja višina dviga (pod zemljo): | 20,5 m |
Največji delovni radij: | 21.1m x1.0T |
Dimenzija: | 6050mm x 1850mm x 2300mm |
Utež: | 11500kg |

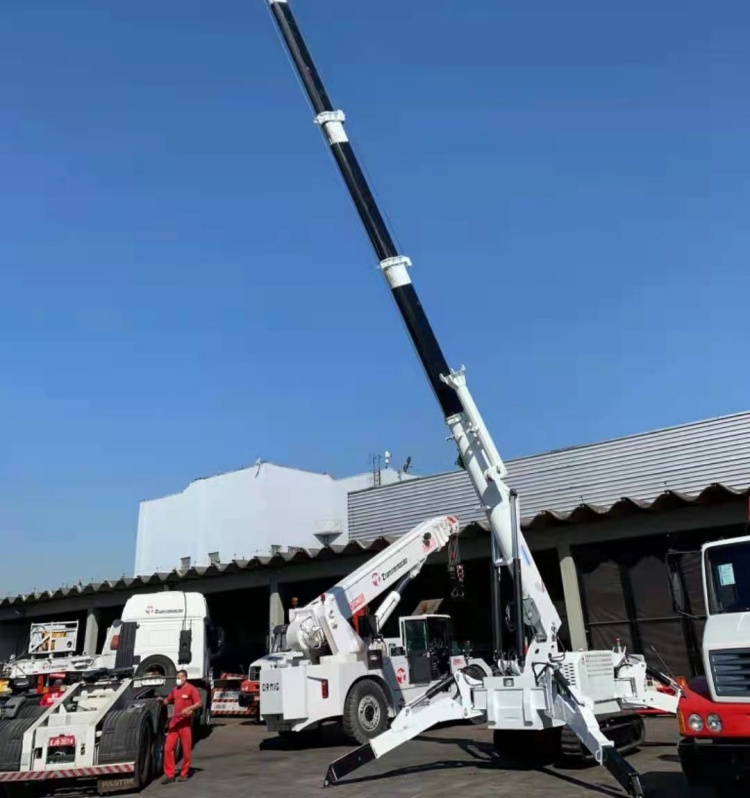

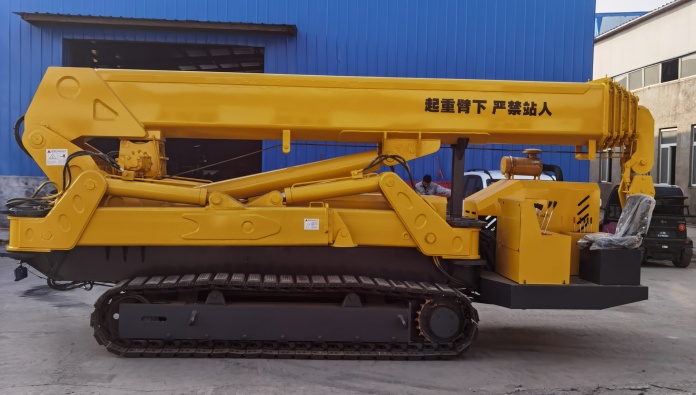

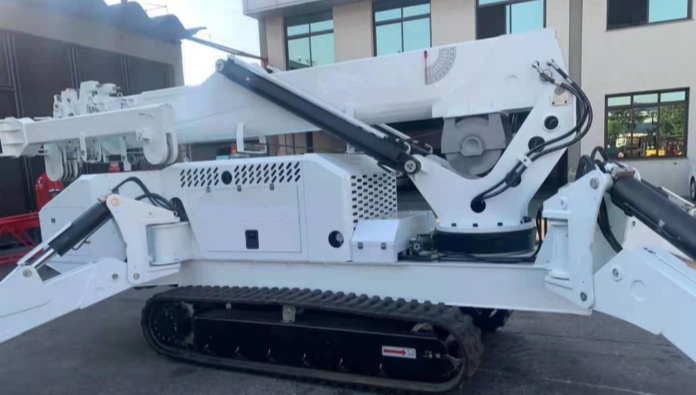

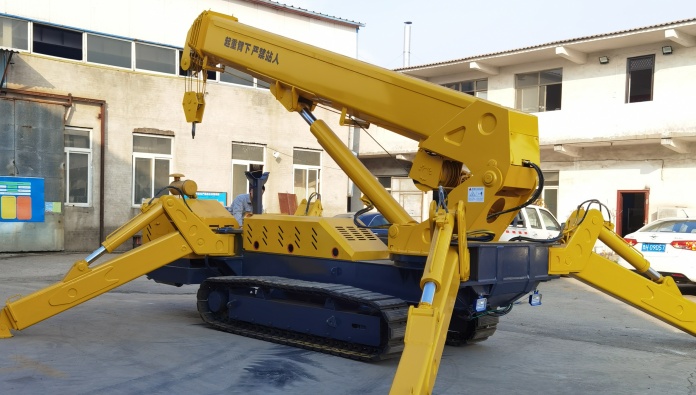

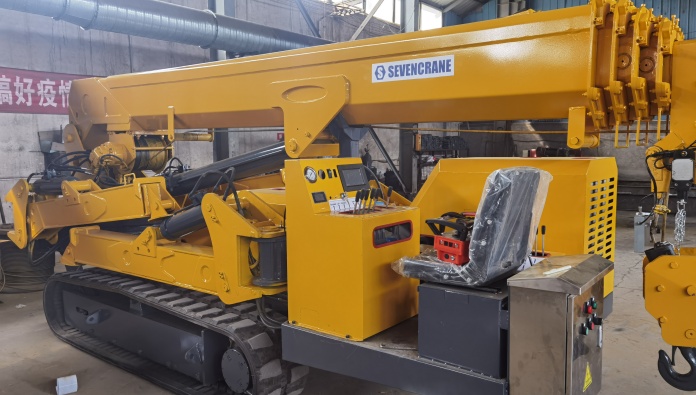

SEVENCRANE SS12.0 spider crane is a highly versatile and compact lifting solution designed for confined spaces and challenging terrains.
Equipped with a powerful telescopic boom, precise remote control operation, and an efficient hydraulic system, it ensures smooth and safe lifting operations. Its crawler tracks provide excellent stability on uneven surfaces while minimizing ground impact.
Ideal for construction sites, industrial maintenance, and indoor applications, this spider crane offers high lifting capacity, flexible maneuverability, and easy transport, making it a reliable choice for various lifting tasks.
Model |
SS12.0 |
|
Specifikacija |
1.0t x 21.1m |
|
Največji delovni radij |
21.1m x1.0t |
|
Največja višina dviga na tla |
21m |
|
Naprava za vitel |
Hitrost kljuke |
6.5m/min-12m/min |
Vrv |
11mmx 100m |
|
Teleskopski sistem |
Vrsta ogrodja |
Hexagonal fully automatic 5 section |
Dolžina nosilca |
5.9m~21.9m |
|
Teleskopska dolžina/čas |
50sec |
|
Gor in dol |
Kot ogrodja/čas |
0~78° /60sec |
Obrtni sistem |
Kot obračanja/čas |
0~360° /120sec |
Opornik |
Outrigger Active Form |
Manual rotation, Automatic support |
Največje razširjene dimenzije |
7400mm x 7000mm x 6000mm |
|
Vlečni sistem |
Walking Way |
Hidravlični motor |
Hitrost hoje |
Low speed 0-0.8km/h, high speed 0-2km/h |
|
Razred Sposobnost |
20° |
|
Dolžina x širina tal |
2570mm x400 mm |
|
Dizelski motor |
Model |
Chang Chai |
Premik |
/L |
|
Rated Output |
65kw |
|
Zagonska metoda |
Električni zagon |
|
Gorivo |
dizel |
|
Električni motor |
Model |
YE2-180-6 (three-phase AC asynchronous motor) |
Delovna napetost |
380V (Hz50) |
|
Moč |
15Kw |
|
Dimenzija |
Dolžina x širina x višina |
6050mm x 1850mm x 2300mm |
Utež |
Teža vozila |
11500kg |
Kapaciteta rezervoarja |
130L |
|
Varnostne naprave |
Torque limiter, anti rollover device, interlock device, hook overwinding device, overload alarm limiter, tri color alarm light, emergency stop button. |

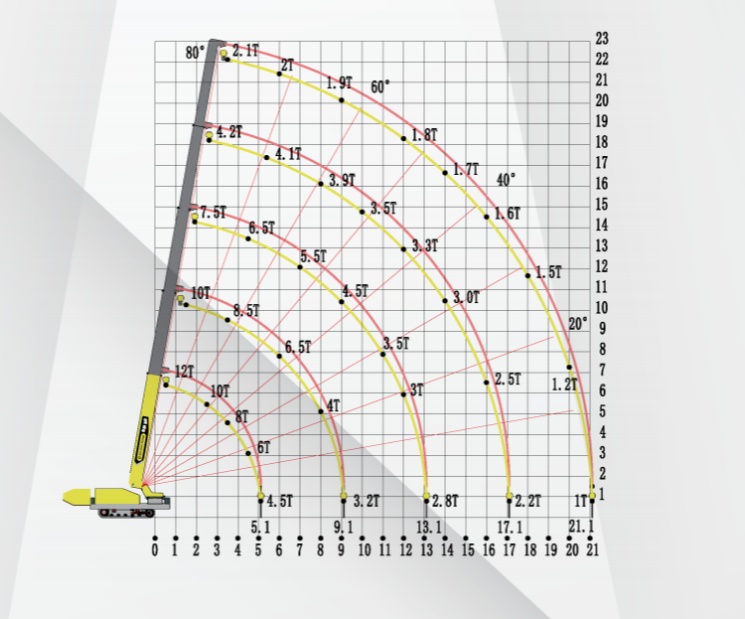

Skupna nazivna obremenitev opornikov na največjih položajih
≤5.9m |
≤9.9m |
≤13.9m |
≤17.9m |
≤21.9m |
|||||
Delovni polmer (m) |
Nazivna obremenitev (t) |
Delovni polmer (m) |
Nazivna obremenitev (t) |
Delovni polmer (m) |
Nazivna obremenitev (t) |
Delovni polmer (m) |
Nazivna obremenitev (t) |
Delovni polmer (m) |
Nazivna obremenitev (t) |
0.5 |
12 |
1.5 |
10 |
2.0 |
7.5 |
2.5 |
4.2 |
3.5 |
2.1 |
2.5 |
10 |
3.5 |
8.5 |
4.5 |
6.5 |
5.5 |
4.1 |
6.0 |
2.0 |
3.5 |
8.0 |
6.0 |
6.5 |
6.0 |
5.5 |
8.0 |
3.9 |
9.0 |
1.9 |
4.5 |
6.0 |
8.0 |
4.0 |
7.0 |
4.5 |
10 |
3.5 |
12 |
1.8 |
5.1 | 4.5 |
9.1 |
3.2 |
9.0 |
3.5 |
12 |
3.3 |
14 |
1.7 |
11 |
3.0 |
14 |
3.0 |
16 |
1.6 |
||||
13.1 | 2.8 |
16 |
2.5 |
18 |
1.5 |
||||
17.1 |
2.2 |
20 |
1.2 |
||||||
|
|
21.1 |
1.0 |
